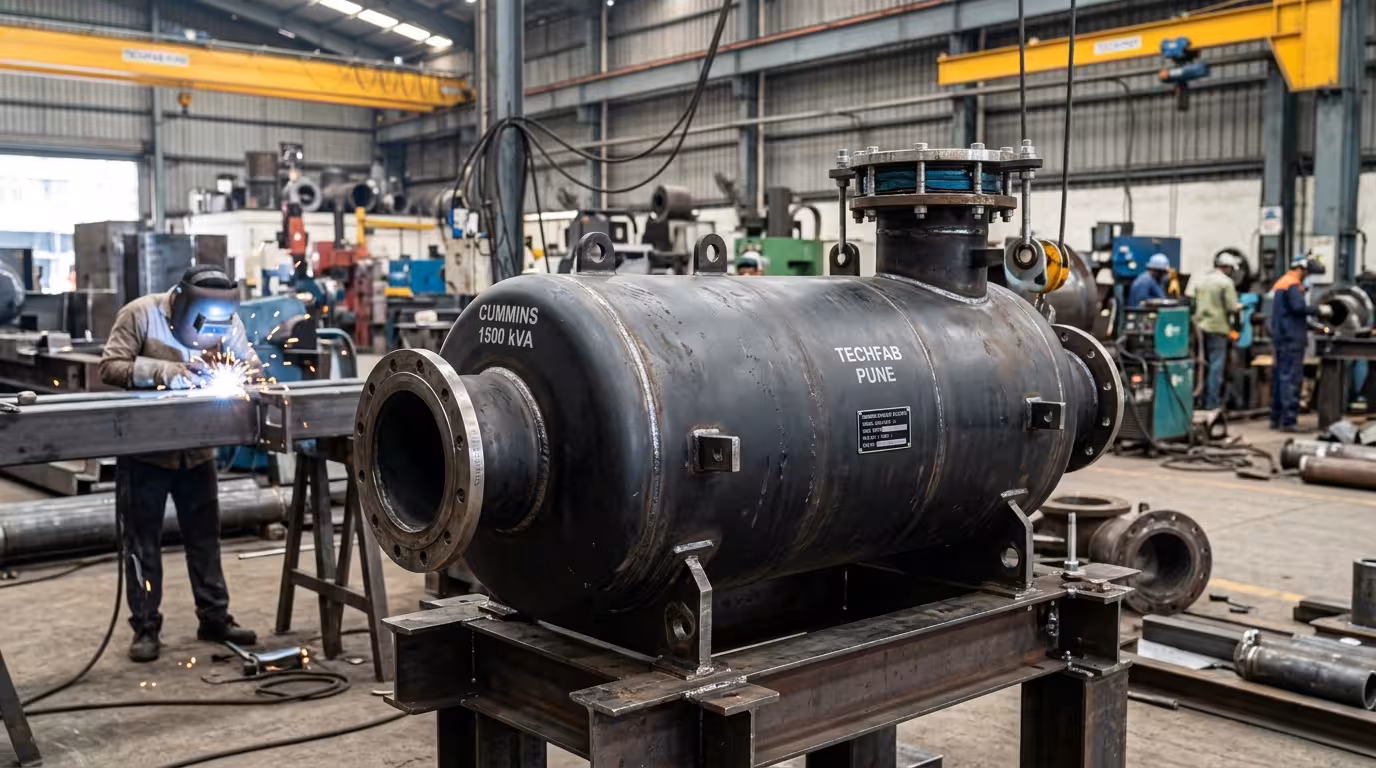

Cummins Generator Exhaust Silencer Manufacturer in India
Engineered for Minimal Backpressure & CPCB IV+ Noise Compliance (15 kVA – 3500+ kVA)
Bhavani Engineering manufactures precision-engineered industrial, residential, critical, and hospital-grade exhaust silencers for Cummins diesel generator sets. Designed with exact fluid-dynamic calculations to protect Cummins turbochargers, preserve engine warranties, and achieve up to 45+ dB(A) noise attenuation.
Individually designed for backpressure limits, thermal expansion, and noise attenuation.
Silencer Systems for Cummins Engine Series
Each engine series has distinct displacement, exhaust mass flow rate, and backpressure tolerances. We customize inlet/outlet geometries, shell diameters, and internal baffles accordingly.
Cummins X2.5 & 4BT / 4BTA Series
15 kVA – 65 kVACompact, dependable 4-cylinder engines widely used in telecom towers, retail complexes, petrol stations, and light commercial setups. Designed for compact canopy integration with minimal thermal radiation and high-velocity flow dispersion.
Cummins 6BT / 6BTA / 6CTA Series
75 kVA – 160 kVAIndia's most trusted mid-range workhorse engines powering manufacturing plants, commercial office towers, and institutions. Requires dual-chamber reactive-absorptive geometry to neutralize low-frequency firing rumble without exceeding the 7.0 kPa backpressure threshold.
Cummins QSL9 & QSN14 Series
200 kVA – 400 kVAAdvanced electronically controlled engines engineered for continuous prime power and heavy industrial cyclic loads. High exhaust gas velocity requires internal acoustic diffusers and aerodynamic transitions to prevent turbocharger backpressure surge.
Cummins KTA19 & VTA28 Series
500 kVA – 750 kVAHeavy-duty prime generation engines standard in pharmaceutical plants, data centers, and heavy processing facilities. Built with heavy-gauge IS 2062 carbon steel shells (4 mm - 6 mm thickness) to prevent low-frequency casing break-out noise across large plant rooms.
Cummins KTA38 & KTA50 Series
1000 kVA – 1500 kVALegendary large-displacement V-engines engineered for mission-critical infrastructure, mining, and high-rise commercial complexes. We fabricate dual-inlet symmetrical silencers with balanced internal pressure splits to protect both turbocharger banks from unequal thermal loading.
Cummins QSK60 & QSK95 Series
2000 kVA – 3500+ kVAUltra-high-capacity powerhouses for hyperscale data centers, utility grid support, and airport backup systems. Massive exhaust mass flow rates require engineered multi-chamber silencer banks with reinforced end-caps, internal expansion sleeves, and hospital-grade acoustic packs.
Engineered Specifically for Cummins Exhaust Aerodynamics & Backpressure Limits
A standard off-the-shelf muffler will de-rate a Cummins engine. Our bespoke acoustic geometries are calibrated against Cummins Application Engineering Bulletins (AEB) to safeguard turbochargers and ensure peak fuel efficiency.
Strict Cummins Backpressure Envelope Compliance
Cummins dictates strict maximum allowable backpressure thresholds (typically under 6.8 kPa / 27 in H2O). Our computational flow diffusers prevent pressure accumulation across all engine RPM cycles.
Combustion Pulse Frequency Cancellation
Cummins 4-stroke in-line and V-engines generate aggressive low-frequency firing pulses (50 Hz - 150 Hz). Our reactive resonator chambers are mathematically sized to create destructive phase cancellation.
High-Density Basalt & SS Mesh Acoustic Lining
Exhaust gases exceeding 520°C degrade ordinary glass fiber. We use 96 kg/m³ high-density resin-bonded basalt mineral wool wrapped with stainless steel SS 304 wire mesh to prevent erosion under high velocities.
Dual-Bank Balanced Exhaust for V-Engines
For KTA38, KTA50, and QSK60 V-engines, our dual-inlet silencers feature precision internal splitter vanes that equalize backpressure between left and right cylinder banks, eliminating turbocharger imbalance.
Why Generic Silencers Damage Cummins Turbochargers
Excessive exhaust backpressure in a Cummins engine directly raises exhaust gas temperature (EGT), resulting in accelerated turbocharger turbine blade fatigue, premature valve seat degradation, and increased specific fuel consumption (SFC). Bhavani Engineering runs backpressure calculations for every Cummins silencer order based on your engine's actual exhaust mass flow (kg/hr) and pipe routing.
Key Technical Parameters
* Exact backpressure, exhaust gas flow rate (m³/min), and maximum gas velocity must be validated against the specific engine technical data sheet. Bhavani Engineering provides certified backpressure calculation reports with every custom build.
Need a Backpressure Audit?
Share your generator model, exhaust pipe length, number of elbows, and target dBA reduction.
Submit Engine Specs for AuditNoise Reduction Grades & Insertion Loss
We manufacture three primary silencer grades for Cummins generators, balancing acoustic silencing performance against permissible backpressure limits.
| Silencer Grade | Insertion Loss | Residual Sound at 1m | Typical Applications | Internal Geometry |
|---|---|---|---|---|
| Industrial Grade | 15 – 20 dB(A) | Approx. 85 dB(A) @ 1m | Industrial estates, remote mining sites, agricultural power plants | Single reactive chamber with perforated central tube and anti-erosion baffles |
| Residential Grade | 22 – 28 dB(A) | Approx. 75 – 78 dB(A) @ 1m | Commercial warehouses, light manufacturing, semi-urban office complexes | Dual reactive-absorptive chambers with high-density mineral wool lining |
| Critical Grade | 28 – 35 dB(A) | Approx. 68 – 72 dB(A) @ 1m | Urban commercial real estate, hotels, corporate headquarters, schools | Multi-chamber design with calibrated resonance cavity and high-temp glass textile wrap |
| Hospital Grade | 35 – 45+ dB(A) | Under 65 dB(A) @ 1m | Hospitals, NABH healthcare facilities, luxury hospitality, quiet residential zones | Triple chamber combination reactive-absorptive with tuned low-frequency resonator |
| Super Critical / Extreme | 45 – 50+ dB(A) | Under 55 dB(A) @ 1m | Silence zones, sound stages, sensitive university laboratories, mission-critical data centers | Full-scale acoustic labyrinth with dual secondary silencers and heavy vibration dampening |
* Residual sound levels assume installation within an acoustic enclosure designed to meet Central Pollution Control Board (CPCB) standards of 75 dB(A) at 1 metre.
Manufacturing Specifications & Metallurgy
Built at our facility in Bakrol/Narol, Ahmedabad, utilizing high-grade metallurgy, precision automated welding, and heat-resistant thermal coatings.
Explore Related Noise Control Solutions
Bhavani Engineering manufactures full-spectrum industrial silencers, soundproof acoustic enclosures, and custom exhaust ducting for all major generator brands across India.
Perkins Generator Silencers
Engineered exhaust silencers for Perkins 400, 1100, 2000, and 4000 series engines.
Volvo Penta Generator Silencers
Custom silencer systems for Volvo Penta TAD530 to TAD1643 series engines.
Stainless Steel Exhaust Bellows
Multi-ply SS 304/321 expansion joints and vibration isolators for generator exhaust lines.
DG Set Silencer Supplier India
Pan-India delivery of residential, critical, and hospital-grade diesel generator silencers.
Frequently Asked Questions: Cummins Silencers
Clear answers to backpressure calculations, CPCB IV+ compliance, manufacturing timelines, and custom flange configurations.
QWhy do Cummins diesel generator sets require custom-engineered exhaust silencers?
Cummins engines feature high-performance turbochargers that operate under strict exhaust backpressure tolerances (typically below 6.8 kPa / 27 inches of water gauge). An improperly sized or generic silencer creates excessive backpressure, which elevates cylinder exhaust gas temperatures, degrades turbocharger life, increases fuel consumption, and risks voiding OEM warranties. Bhavani Engineering designs silencers with custom aerodynamic diffusers specifically calculated for Cummins exhaust flow rates.
QCan Bhavani Engineering supply silencers for large Cummins V-engines like KTA38, KTA50, and QSK60?
Yes. For large Cummins V12 and V16 engines (1000 kVA to 3000+ kVA), we specialize in manufacturing dual-inlet symmetrical silencers as well as twin parallel silencer trains. These ensure identical backpressure on both cylinder banks, protecting the dual turbochargers from thermal imbalance and uneven wear.
QWhat noise reduction level can your silencers achieve on a Cummins 500 kVA or 1250 kVA set?
Depending on your site requirements, we supply Residential Grade (22–28 dBA reduction), Critical Grade (28–35 dBA reduction), and Hospital Grade (35–45+ dBA reduction) silencers. On a 1250 kVA Cummins KTA50 set, our Hospital Grade system typically drops ambient noise to 65–70 dBA at 1 meter, fully meeting CPCB silence zone norms.
QDo you supply the stainless steel expansion bellows and companion flanges with the silencer?
Yes. Every Cummins silencer assembly can be supplied as a complete turnkey package including multi-ply SS 304 or SS 321 flexible exhaust bellows, companion flanges, high-temperature graphite gaskets, and mounting saddles fabricated at our Ahmedabad manufacturing units.
QCan you replace an existing rusted or high-backpressure silencer on an installed Cummins generator?
Yes. We regularly supply retrofit replacement silencers for Cummins gensets across Gujarat, Maharashtra, Rajasthan, and pan-India. You can share your engine model, existing pipe diameter, and available space, and our engineering team will provide a direct drop-in replacement drawing.
QHow do you test and verify the quality of your Cummins exhaust silencers?
Every unit fabricated at our Rudra Industrial Park facility in Ahmedabad undergoes weld inspection (argon-purged TIG/MIG welding), dye penetrant testing (DPT) on critical seams, and hydrostatic/pneumatic pressure testing. We also provide certified backpressure calculation reports based on Cummins engine datasheets.
QHow quickly can Bhavani Engineering manufacture and deliver a Cummins silencer?
Standard models for common Cummins engines (such as 6BT 125 kVA, 6CTA 160 kVA, and QSL9 250 kVA) are manufactured within 3 to 7 working days. Heavy-duty custom silencers for 1000 kVA to 2500 kVA units are typically fabricated and dispatched within 10 to 14 days with nationwide freight coordination.
